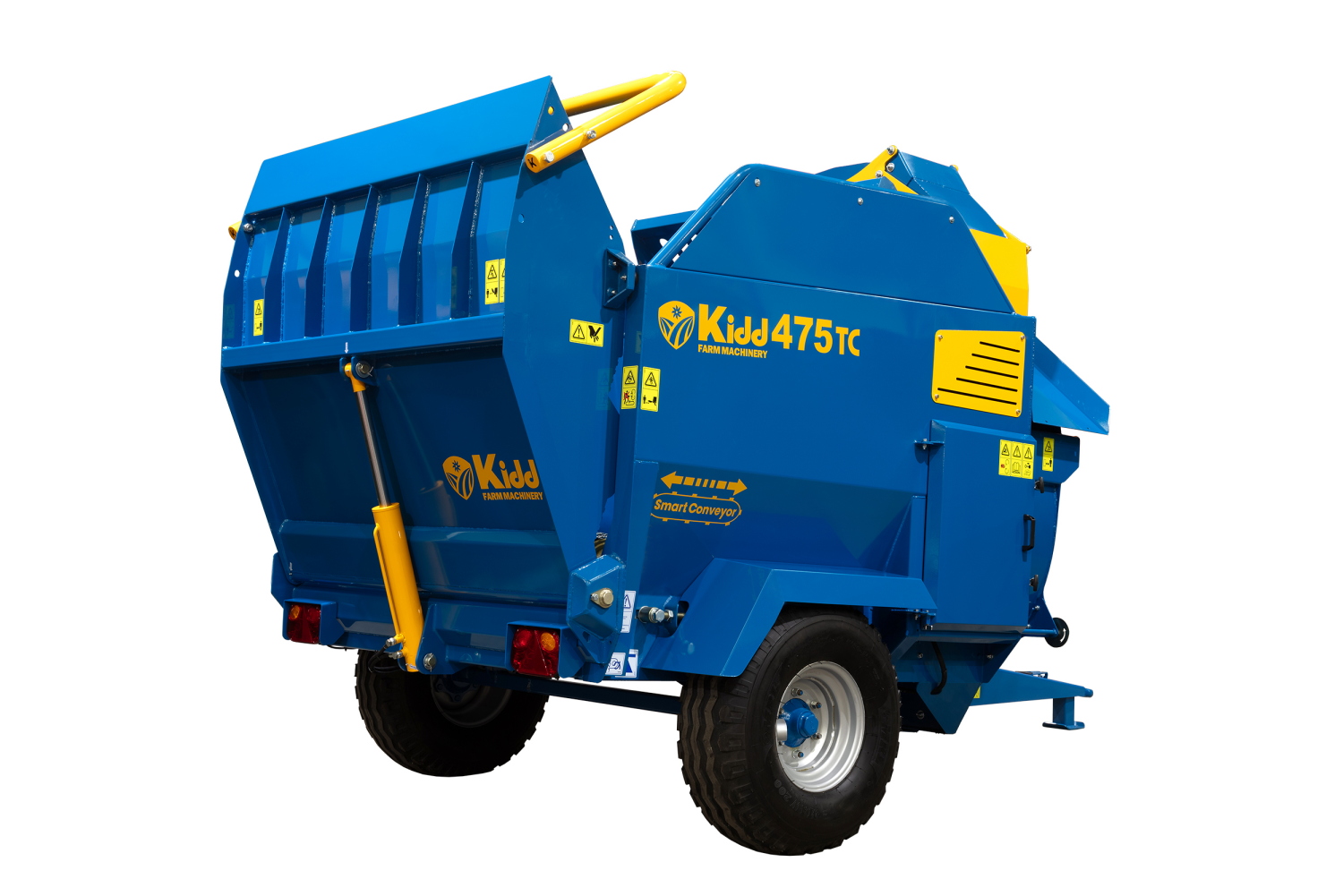

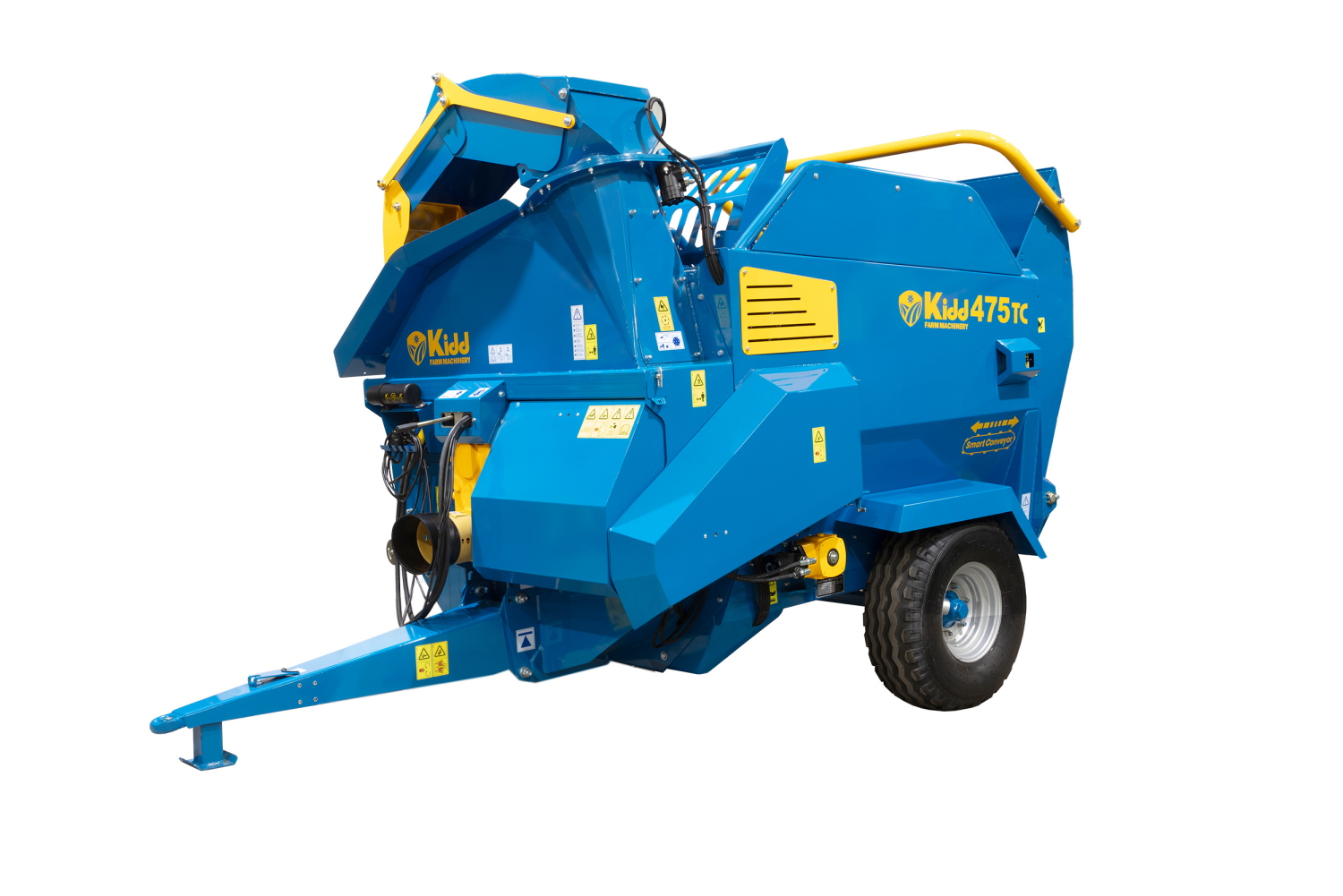

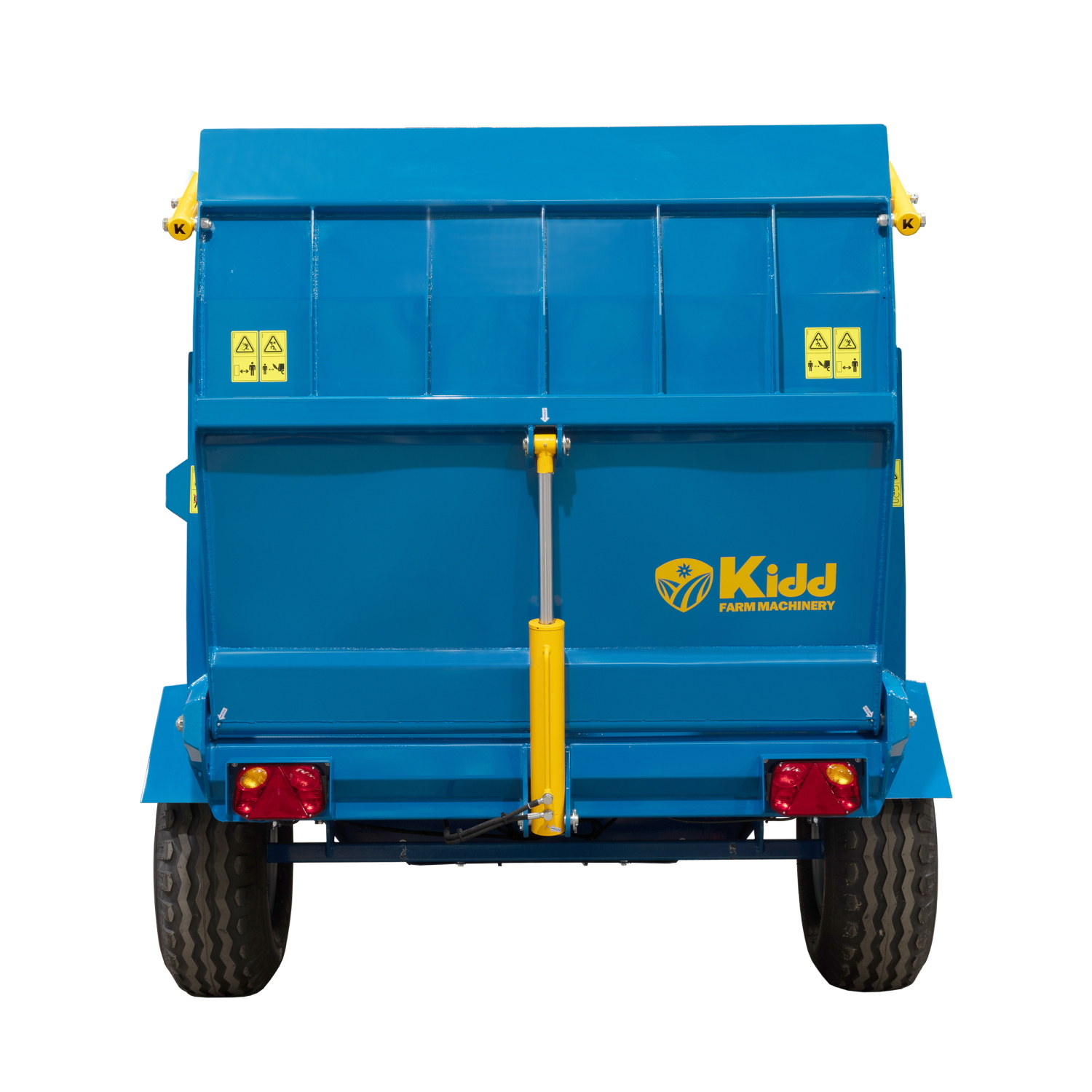

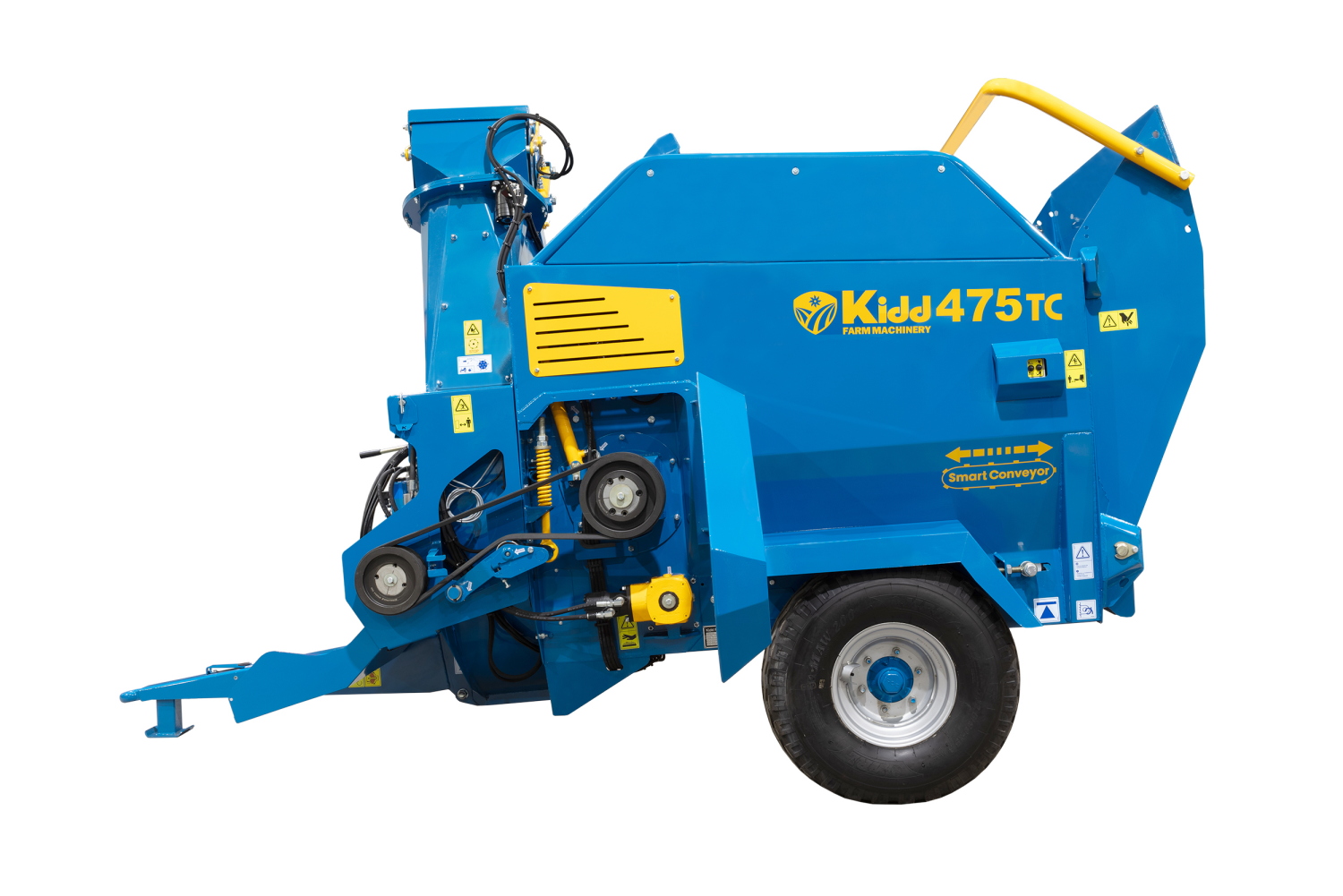

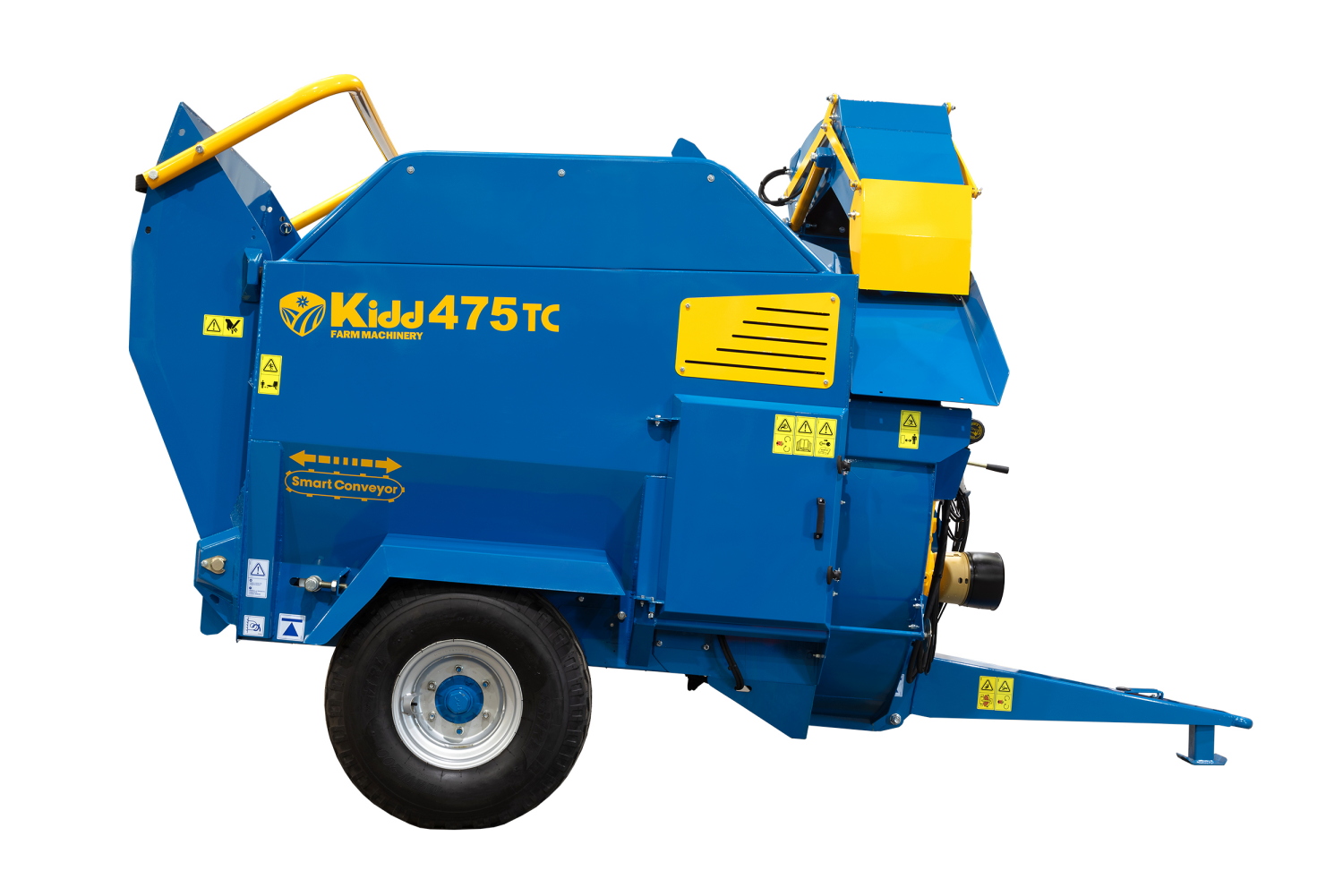

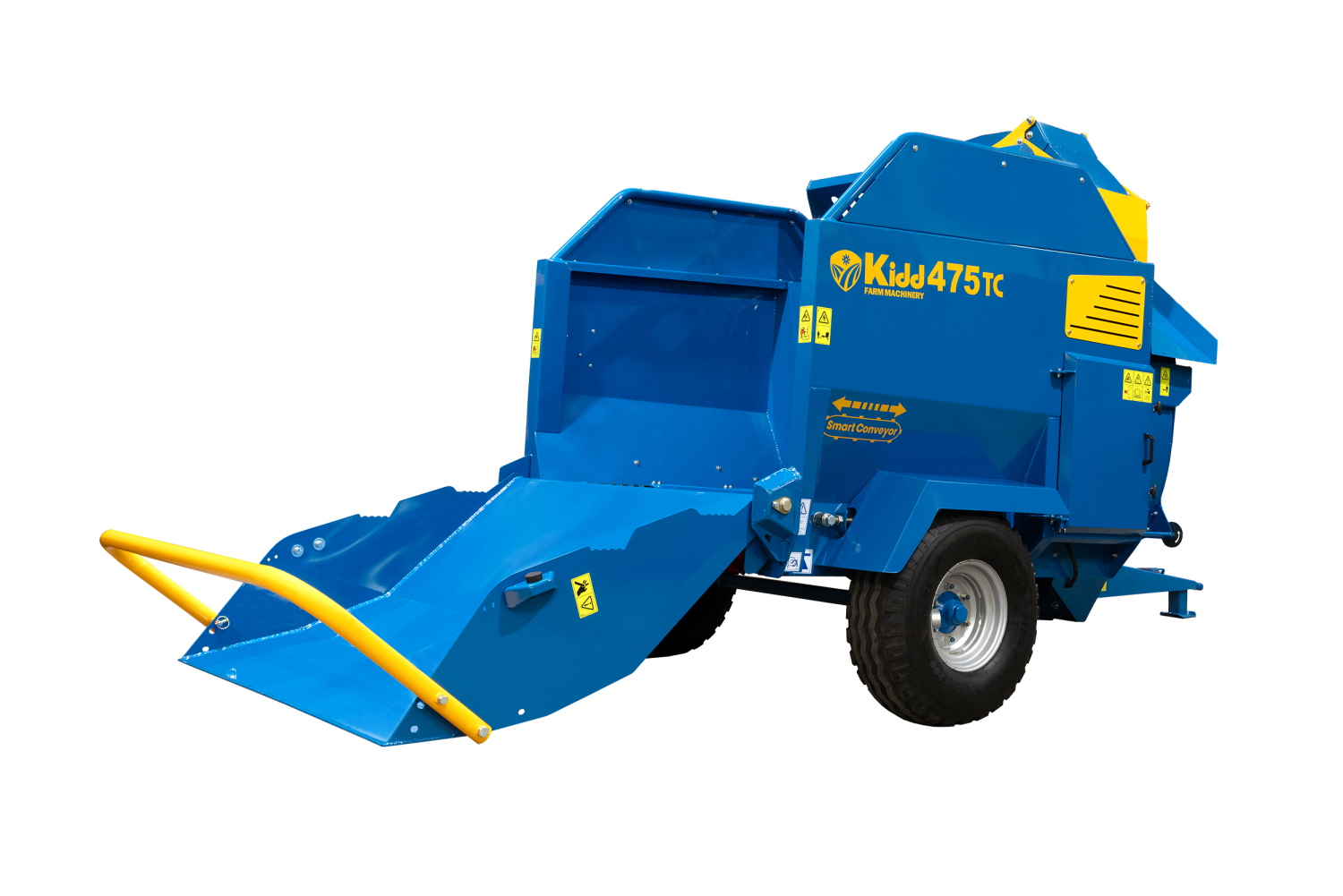

Kidd 475 Bale Shredder
Our bale shredder range is designed to cater to a wide variety of needs, offering versatility and reliability. Available in multiple sizes, the range also features a selection of chute options tailored to suit any bedding arrangement. Our Twin Chop versions achieve a finer chop down to 25mm and also chop clamp silage. Our standard models can shred both clamped and baled silage.
| Capacity | 4.8m³ |
| Blow Distance* | 25m |
| Overall Length c/w drawbar (mounted | 4.35m |
| Overall Width | 2.26m |

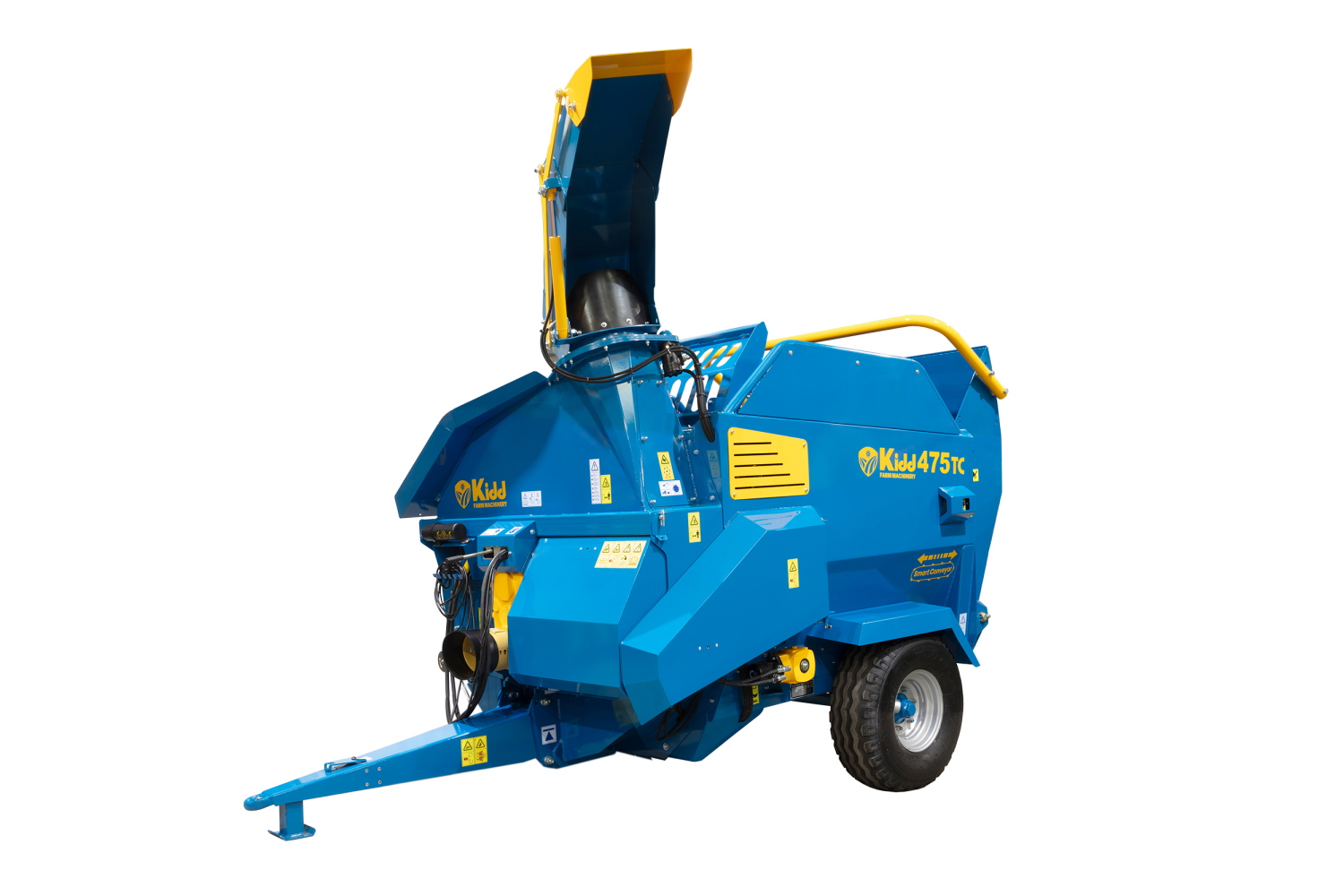

| Overall Height Chute Extended | 3.33m |
| Overall Height chute folded *With standard wheels fitted |
2.75m |
| Bale chamber width | 1.8m |
| Bale chamber height | 1.1m |
| Bale chamber length | 1.6m |
| Weight unloaded | 2340kg |
| Tyre size (standard) | 12.5/80 x 15.3 x 14ply |
| Max round bale diameter | 2.1m |
| Max square bale dimensions | 1.2m x 1.2m x 3.1m |
| Min tractor PTO requirements | 100hp (60KW) |
*Average subject to conditions
| Twin chop |
| Smart Conveyor |
| Standard, Horizontal, Low and Hog |
| Wide angle PTO with slip clutch & over run clutch |
| Mudguards |
| Larger wheels, tyres and axles |
| Parking Jack |
| Clevis hitch in lieu of ring |
| Lighting Kit |
 |
 |
 |
 |
 |

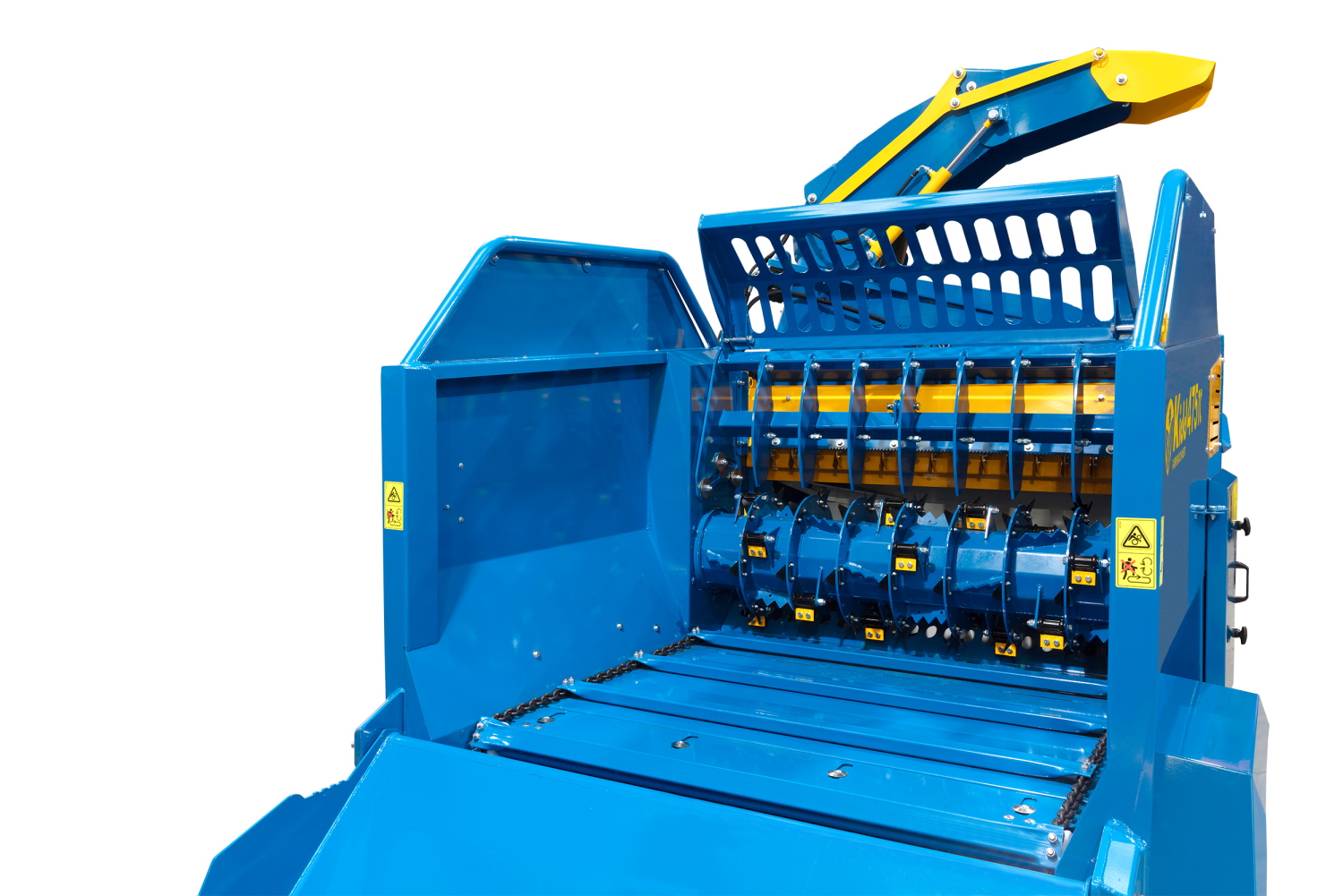

| Twin Chop – to provide a consistent chopped output |

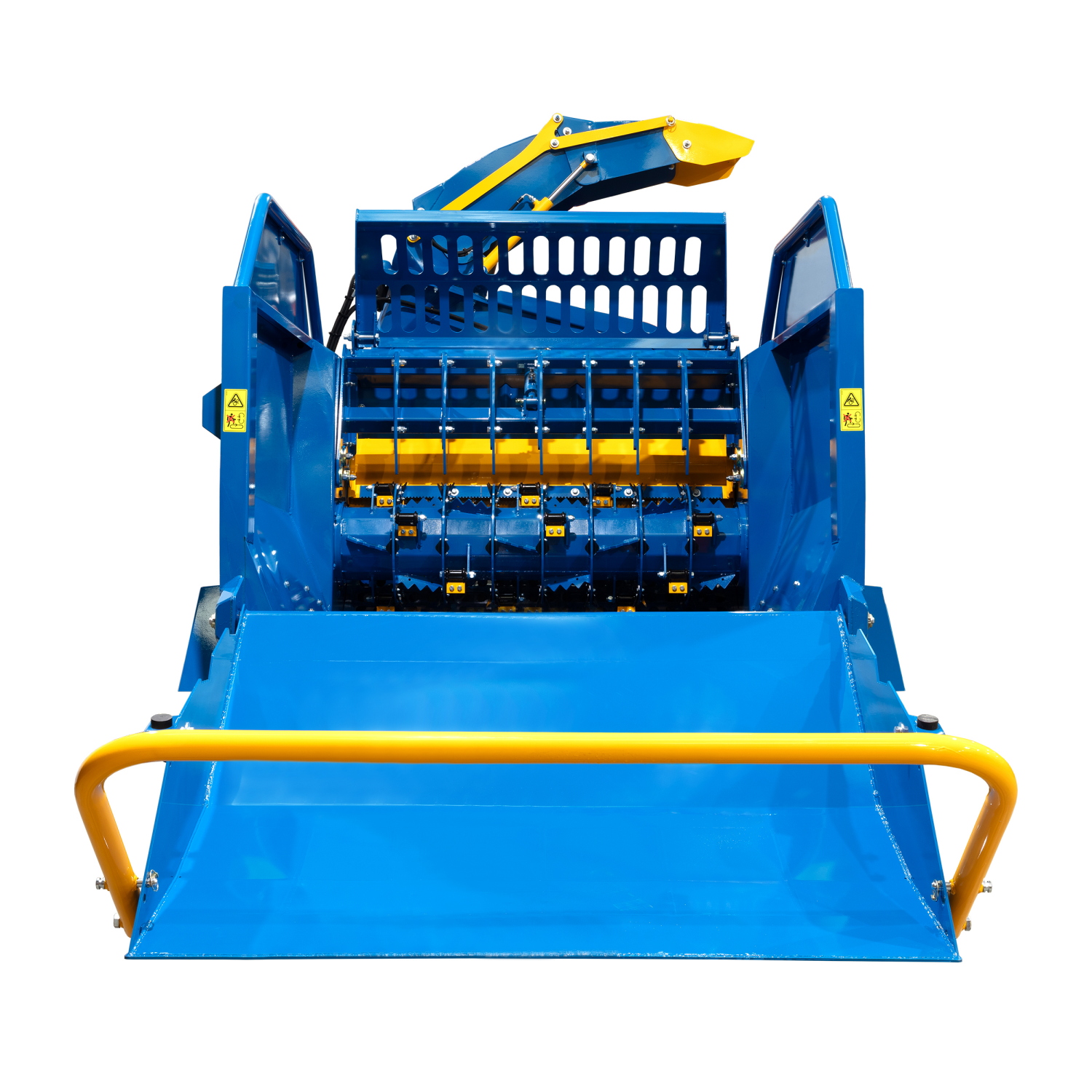

Flail and blade combinations to suit any bales | Remote electronic controls – for safety | Rear controls for ease of operation | Smart Conveyor – To manage the flow of material through the fan |
